Crowley C400 Advanced
Aperture Card Scanner

The Next Generation of
Aperture Card Scanner

Get a Quote on Aperture Card Scanners

Request a Web Demo

Piggy Bank
Click to discover hardware purchasing options.

Expert Digital Imaging in a Compact Desktop Design

The C400 Advanced aperture card scanner simultaneously captures both 35 mm film images and Hollerith punch data from cards.

For over a decade, the C-Series aperture card scanners have provided those in the manufacturing, engineering and nuclear records management field with an accurate, high-volume conversion solution for 35 mm film and Hollerith data from aperture cards. The next generation C400 Advanced aperture card scanner improves upon previous models through a new camera system, larger input hopper and improved internal mechanics to digitize all formats of 35 mm microfilm aperture cards and punch Hollerith data.

The only production aperture card scanner on the market, the C400 Advanced provides even more image quality, ease-of-use and speed for high-volume card conversions using an automatic feed system that can scan batches of 300 cards unattended – double the capacity of the previous model – or can be manually fed for on-demand card capture. Advanced image enhancement and editing tools are included, adding versatility and ease to this aperture card scanner. Once scanned, the data from the aperture cards can be accessed instantly for viewing, printing, email, distribution or storage. Aperture card readers allow for the easy digitization of this valuable medium.

What are Aperture Cards?

Although you’re likely familiar with this medium, they’re currently rare enough that a brief description of their purpose and function is worth noting.

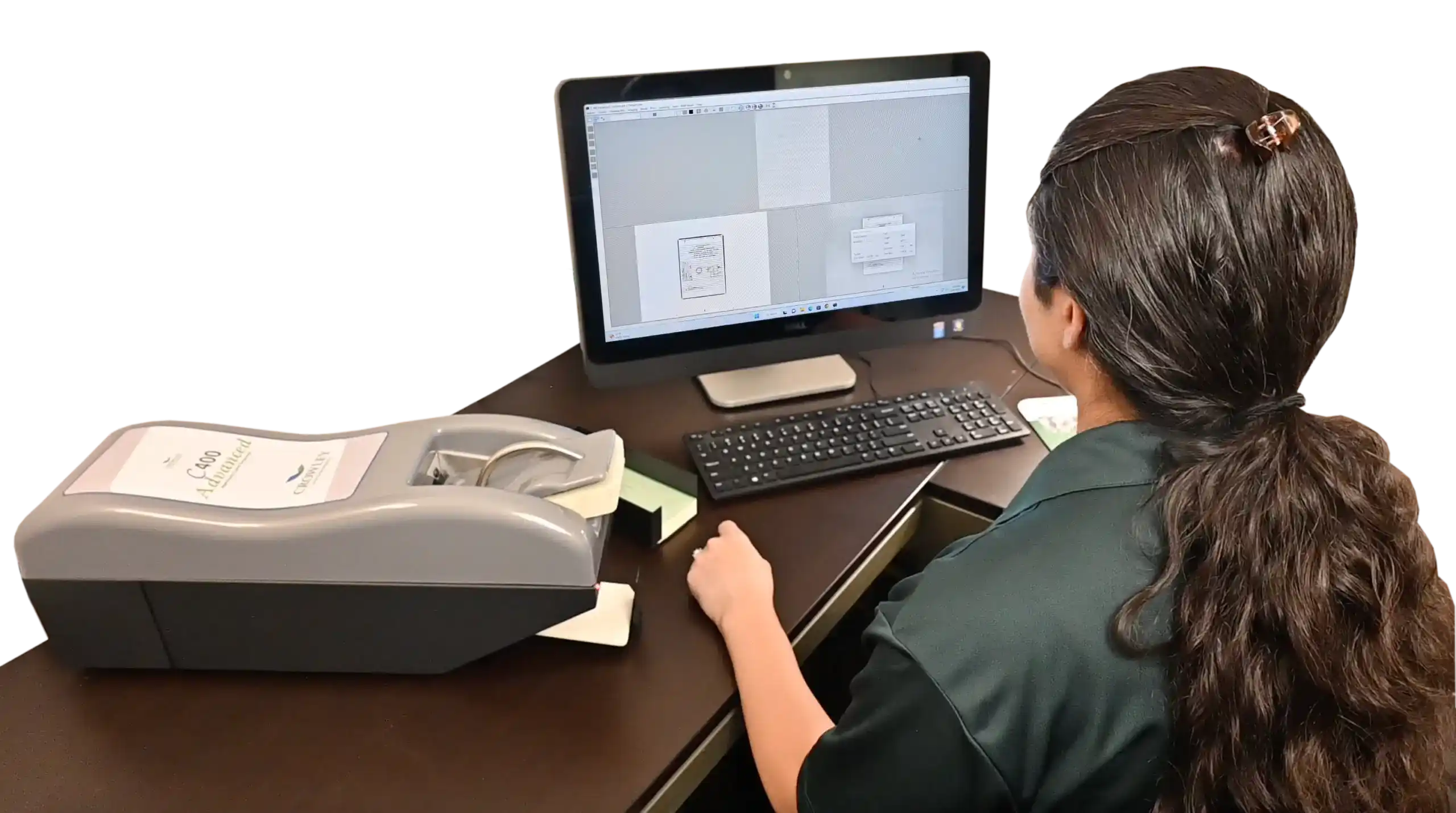

The C400 Advanced aperture card scanners are compact and conveniently fit into existing workstations.
The C400 Advanced aperture card scanners are compact and conveniently fit into existing workstations.

Aperture cards were first put to use for their current purposes in the mid-20th century. Their adoption accompanied the rise of early computers, which were designed to process the data contained on the cards. Like other microfilm, aperture cards are designed to compress data into a smaller format, making duplication and transfer easier than it would be if data remained full-sized.

They do this through a series of physical hole punches representing coded data. Additionally, the cards contain miniaturized microfilm chips, allowing for image storage.

For decades, these cards were the preferred method of data storage for many industries due to their ability to be easily read, indexed, stored and quickly retrieved by computer.

  • NEW Double the card hopper capacity of the previous model (150 cards to 300 cards) for increased efficiency and automation
  • NEW Enhanced camera and light source for excellent image quality and clarity
  • NEW Updated internal design for improved serviceability, resulting in quick and infrequent maintenance
  • Affordable
  • High-quality images at full resolution
  • Hollerith (punch) data is automatically read and used to select drawing sizes and file names, if required
  • On-demand and batch scanning modes included as standard feature
  • Virtual rescan automatically reprocesses the scanned image with alternative imaging parameters, eliminating the need for rescans
  • Capable of scanning any ISO aperture card with no extras or modifications to purchase
  • In-software

Visit Crowley’s YouTube Channel for more scanner videos

Crowley C400 Advanced Aperture Card Scanner

Blog: The Gift of Digitization (Aperture Card Scanner at Southern Nuclear energy facility)

Blog: Aperture Cards: The Last of an Art Form

Blog: 30 (Days); 9 (Industries); One (Chance to Win): A Month in Crowley Scanner Sales

C400 Advanced PC Specifications



Processor Minimum/Recommended – Intel Core i7 (6th generation and above)
Memory Minimum/Recommended – 16 GB or more
Hard Drives 120 GB SATA
Operating System Windows 10 and 11 Pro (64 bit only with Intel Processor)
USB Interface USB 3.0

The Crowley Company pursues a policy of continuous product improvement and reserves the right to change these specifications without notice.

Visit Crowley’s Technical Support section for information on scanner maintenance, warranty, contract options and more.

FAQ: C400 Advanced Aperture Card Scanner

1. What is the C400 Advanced Aperture Card Scanner?

The C400 Advanced is a high-performance scanning device design for fast and efficient digitization of aperture cards. It delivers premium quality scans, operates at high speeds, and supports a range of file formats. It’s a go-to tool for industries that rely on aperture card archives.

2. What types of aperture cards can it handle?

This scanner works with pretty much any kind of aperture card you throw at it, standard punched cards, cards with microfilm frames, you name it. Its advanced tech ensures accurate, top-notch scans no matter the type.

3. Who uses the C400 Advanced Aperture Card Scanner?

The C400 Advanced is widely used. You’ll find it in engineering, manufacturing, government agencies, and archival organizations. It’s particularly valuable for converting old architectural plans, engineering drawings, or historical blueprints stored on aperture cards.

4. How does it help save time?

With a hopper that can hold up to 300 cards, batch processing, and an easy-to-use interface the C400 Advanced streamlines the digitization process. It enables rapid conversion of massive card collections—without compromising quality.

5. Is it compatible with modern operating systems?

Absolutely. The C400 Advanced is designed to integrate seamlessly with current operating systems and software. It features updated drivers and tools for easy workflow integration.

6. What file formats does it support?

The scanner supports a variety of commonly used formats including TIFF, JPEG, and PDFs. Ensuring compatibility with diverse digital preservation and documentation needs.

7. Can scanning settings be customized?

Yes. Users can adjust resolution, contrast, and file output preferences to achieve the results you need.

8. How can I purchase the C400 Advanced or get support?

Complete the Get a Quote form at the top of this page or contact a sales representative directly for purchasing details. After purchase, our support team will help keep your scanner operating at peak performance.

9. Why choose the C400 Advanced Aperture Card Scanner?

The C400 Advanced is reliable, and built for top performance. If you need a solution for digitizing and preserving aperture cards, this is an easy choice.
